KM Series

‘User pays’ metered site power with the full range of options.

If spiralling electricity costs are a problem in your park, this is the powerhead for you. Fitted with NMI approved kWh meters for monitoring power use, the KM Series enables a ‘user pays’ system for site power usage. Ideal for annual and permanent sites, the KM Series comes in pole mount and column mount varieties and is available with the full range of options, including water taps, lighting, TV and lockable doors. When fitted with our remote meter reading system (Orto-Mate), the KM Series also offers the perfect ‘user pays’ solution for tourist site, where guests can be billed for their power usage with the click of a button, upon checkout.

Features

• kWh meters for monitoring site power
• Compatible with Orto-Mate Utility Management System
• Up to 8 x 15A outlets
• Four individual self closing door cavities
• Locking door option – Keyed alike or keyed differently with master key
• Life time warranty on high density engineering grade polyethylene shell
• LED lighting
• TV points
• No leak ¼ turn taps
• Internal Perspex insulating tray separating 240v from 12v hardware
• Access Panel
• Overhead power lead extension pole

See the brochure

Tech specs

• AS/NZS 3000 & 3001 compliant
• Double pole switching 30mA 6kA RCBOs
• Engineering grade high density polyethylene body
• Stainless steel metal fixings
• IPX4 Weatherproof rating
• 240V 15A 3 flat pin socket outlets
• 12mm ¼ turn chrome taps
• 20mm x 1000mm F/F stainless steel braided flexible hose connection for water
• 60mm O.D. standard mounting pipe
• NMI approved kWh meters for trade use

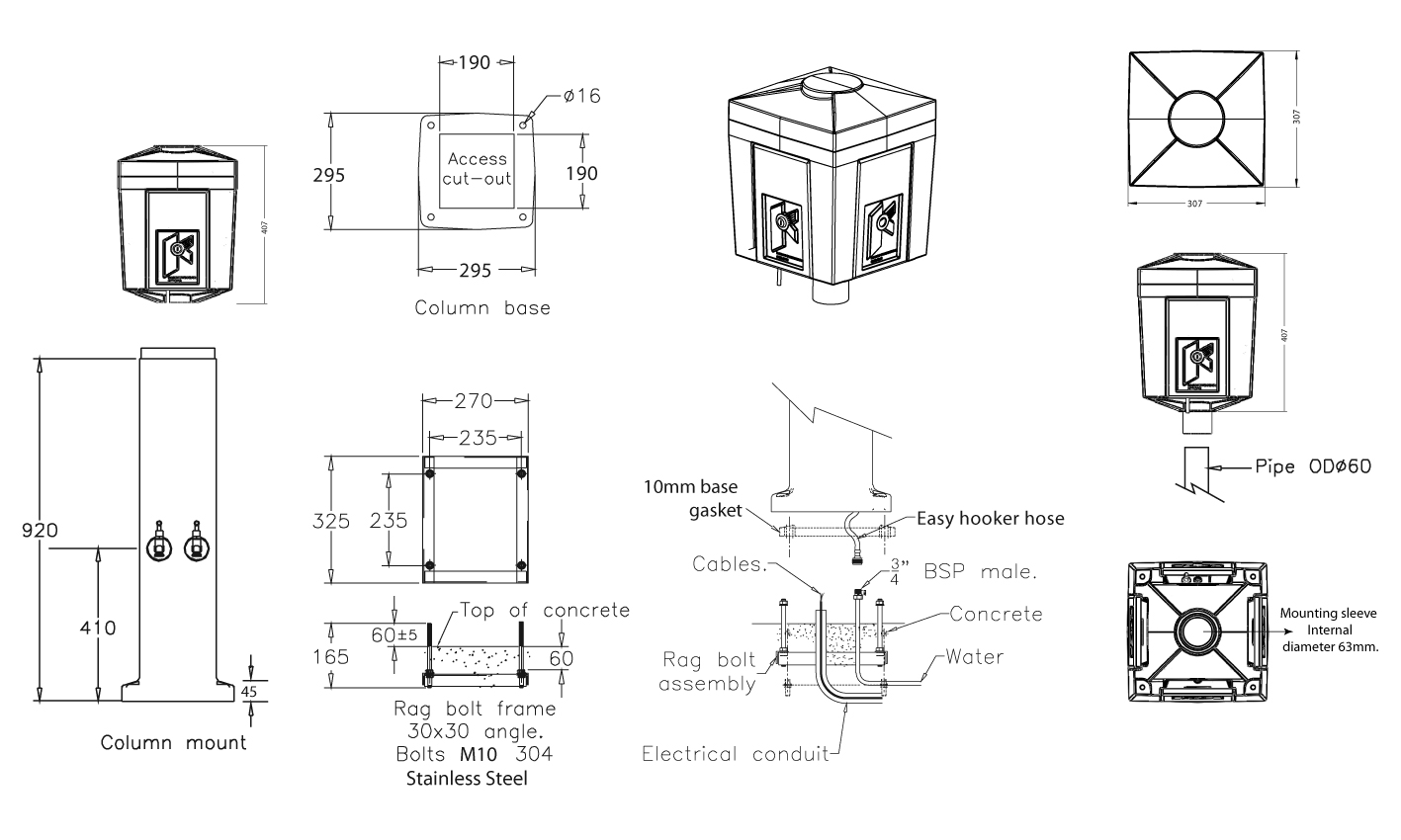

Installation Guide
